What is an Elevator Modernization? Fixtures.

Written By Sean McMannis

What are elevator fixtures? Fixtures refer to the push buttons, indicators and key switches. These are located in the hallway (hall stations) and car (car operating panel).



When should I update my fixtures? While fixtures can be updated at any time, this is usually done with the controller. Updating the controller will trigger fixture upgrades so the elevator will comply with current codes related to fire service, emergency communication system and more.

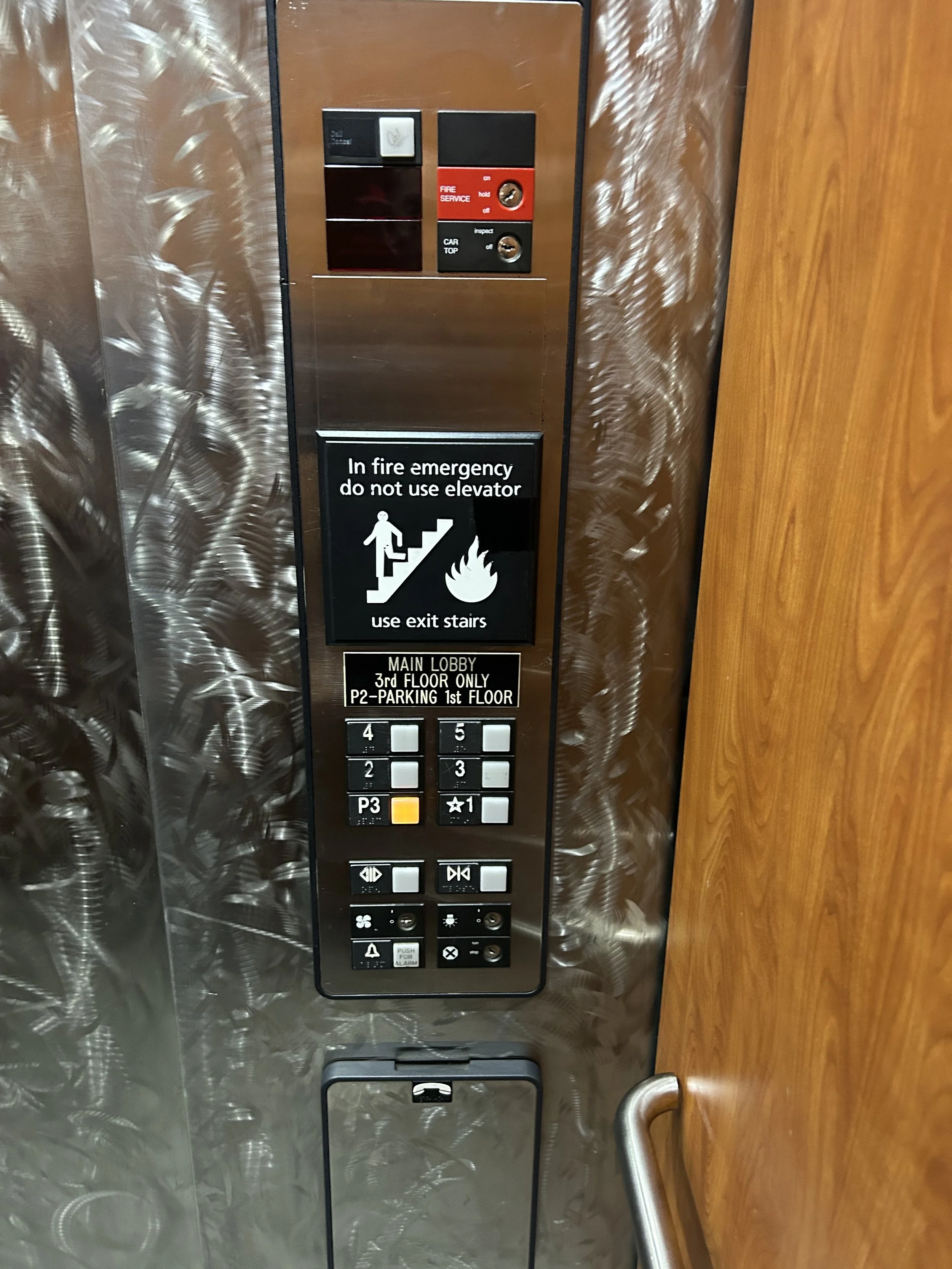

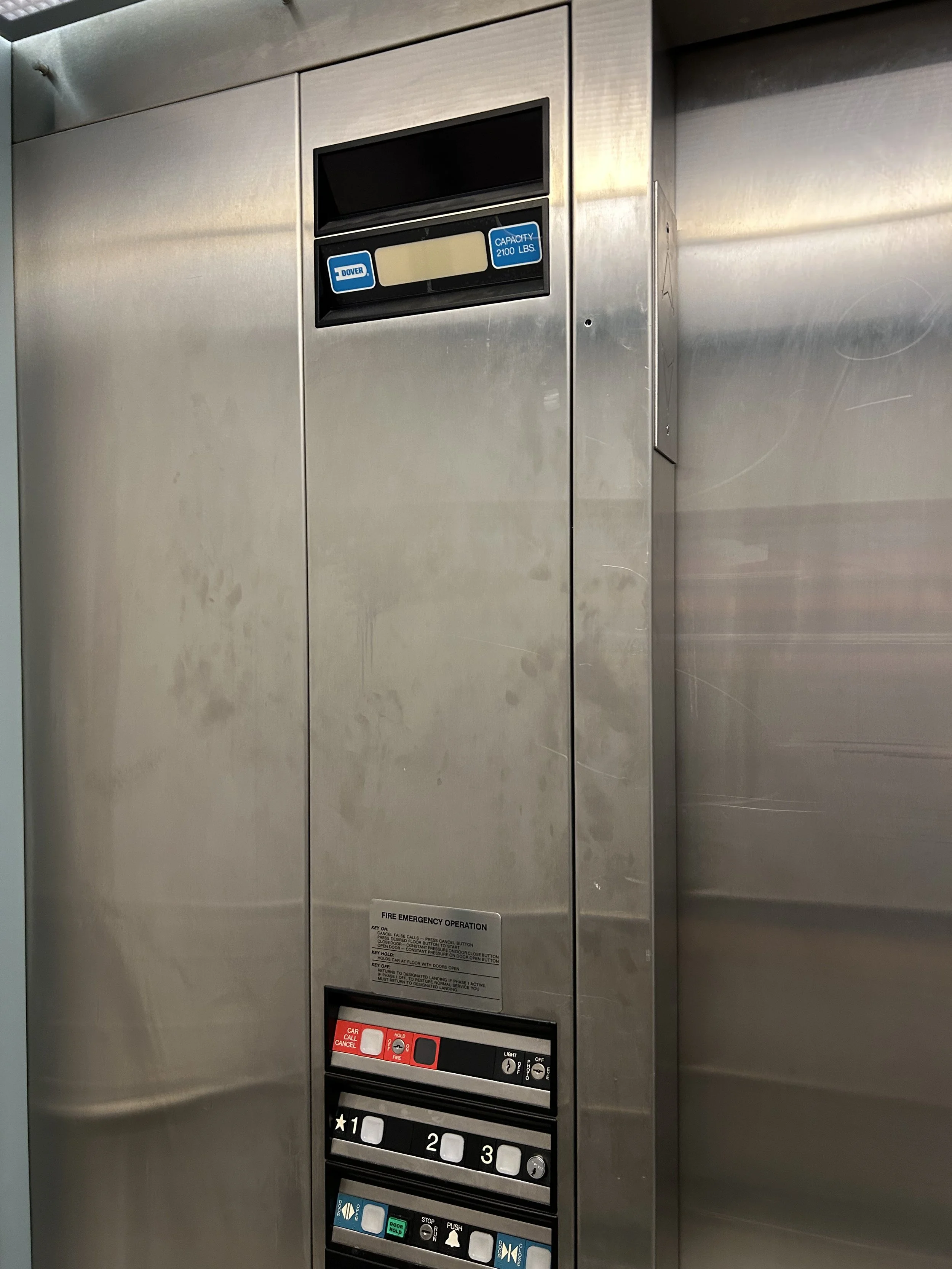

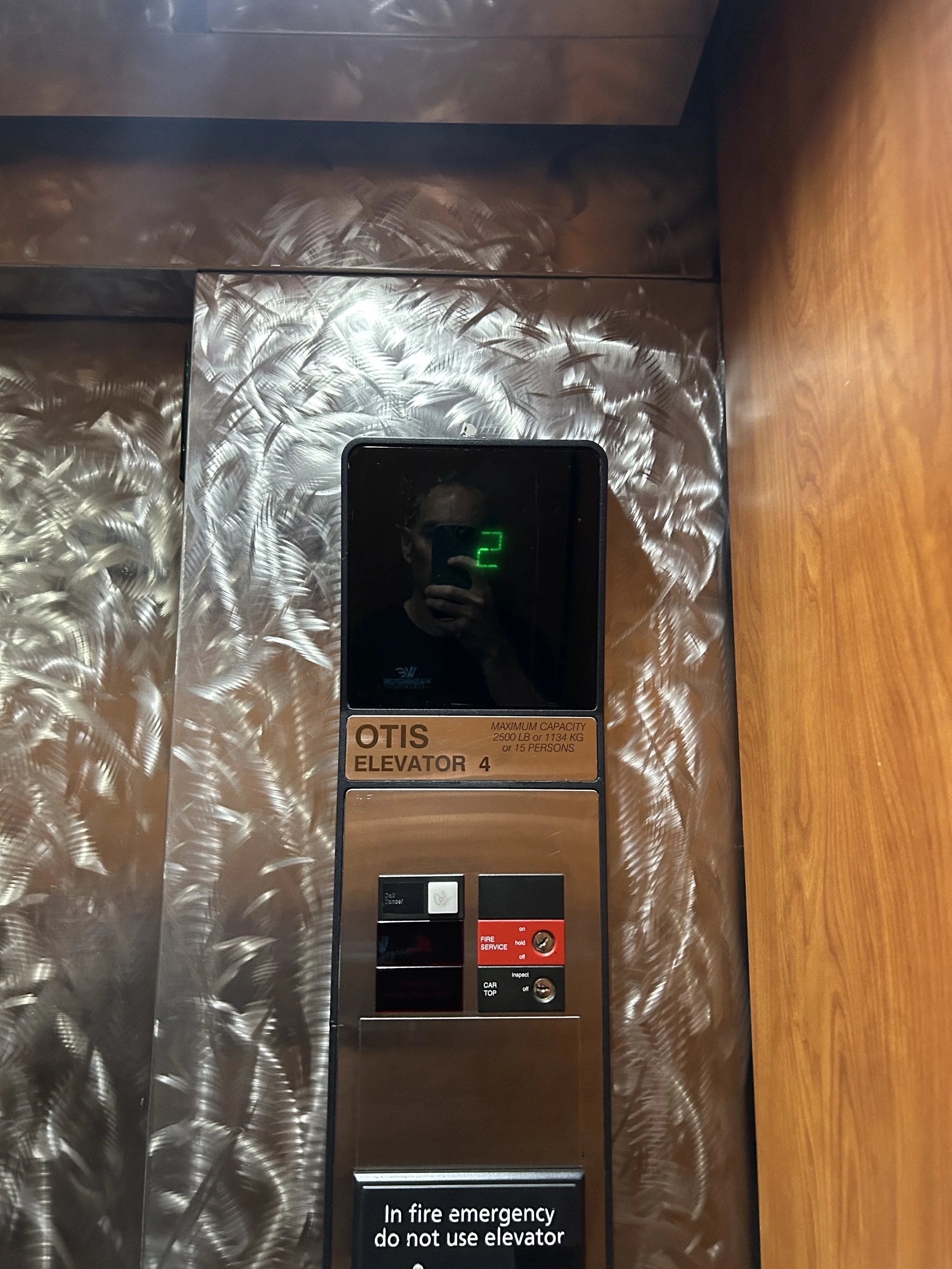

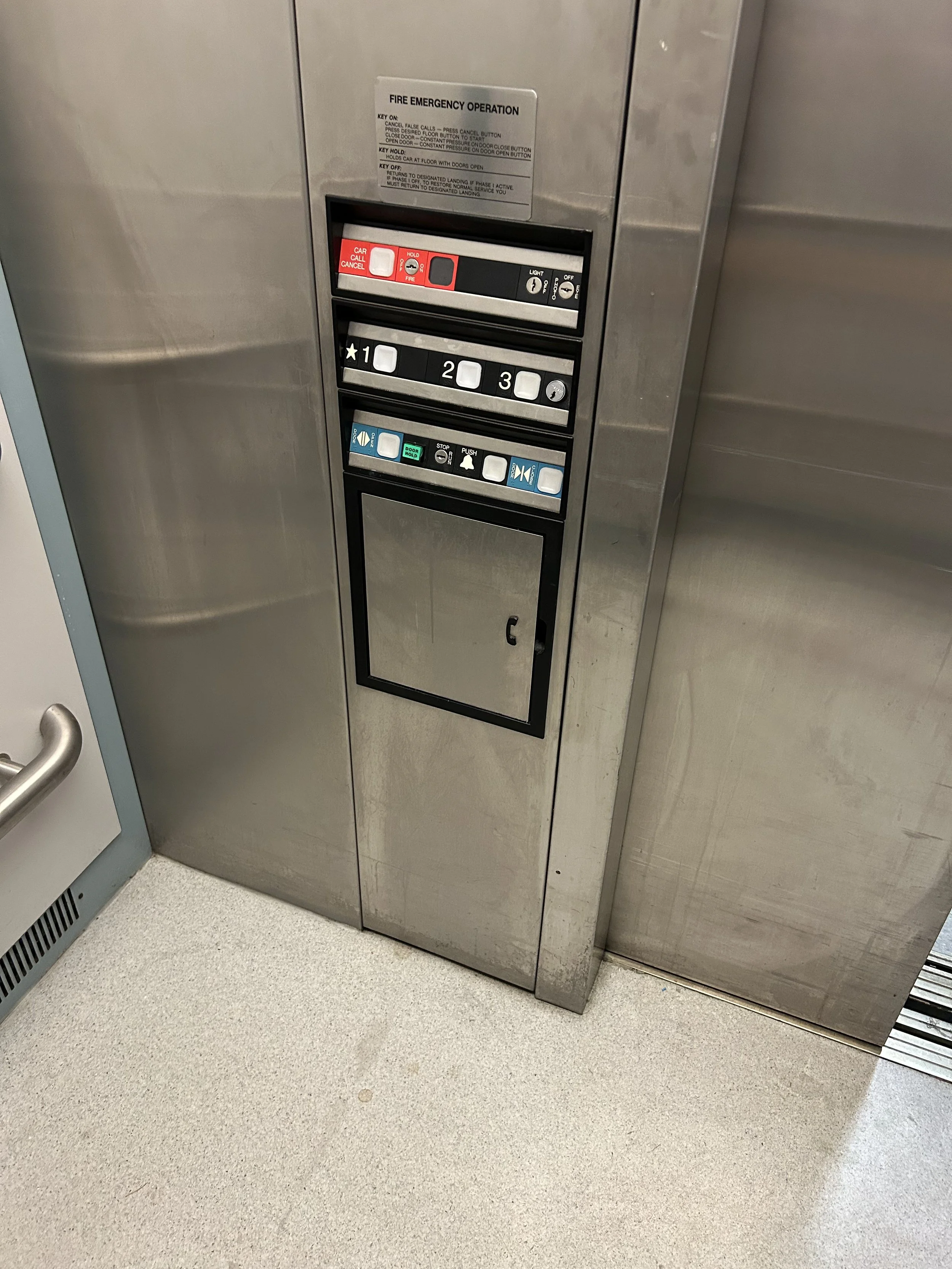

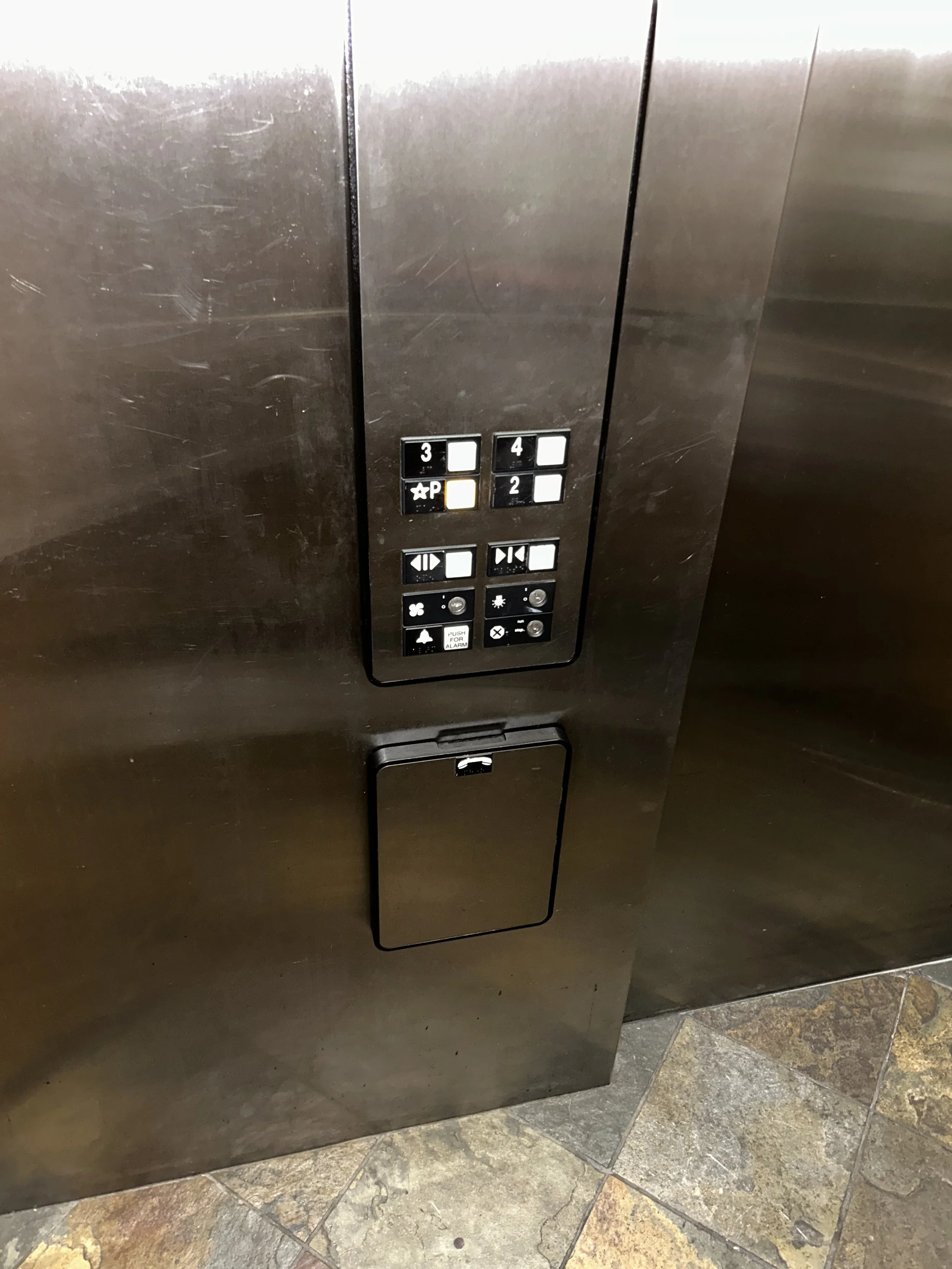

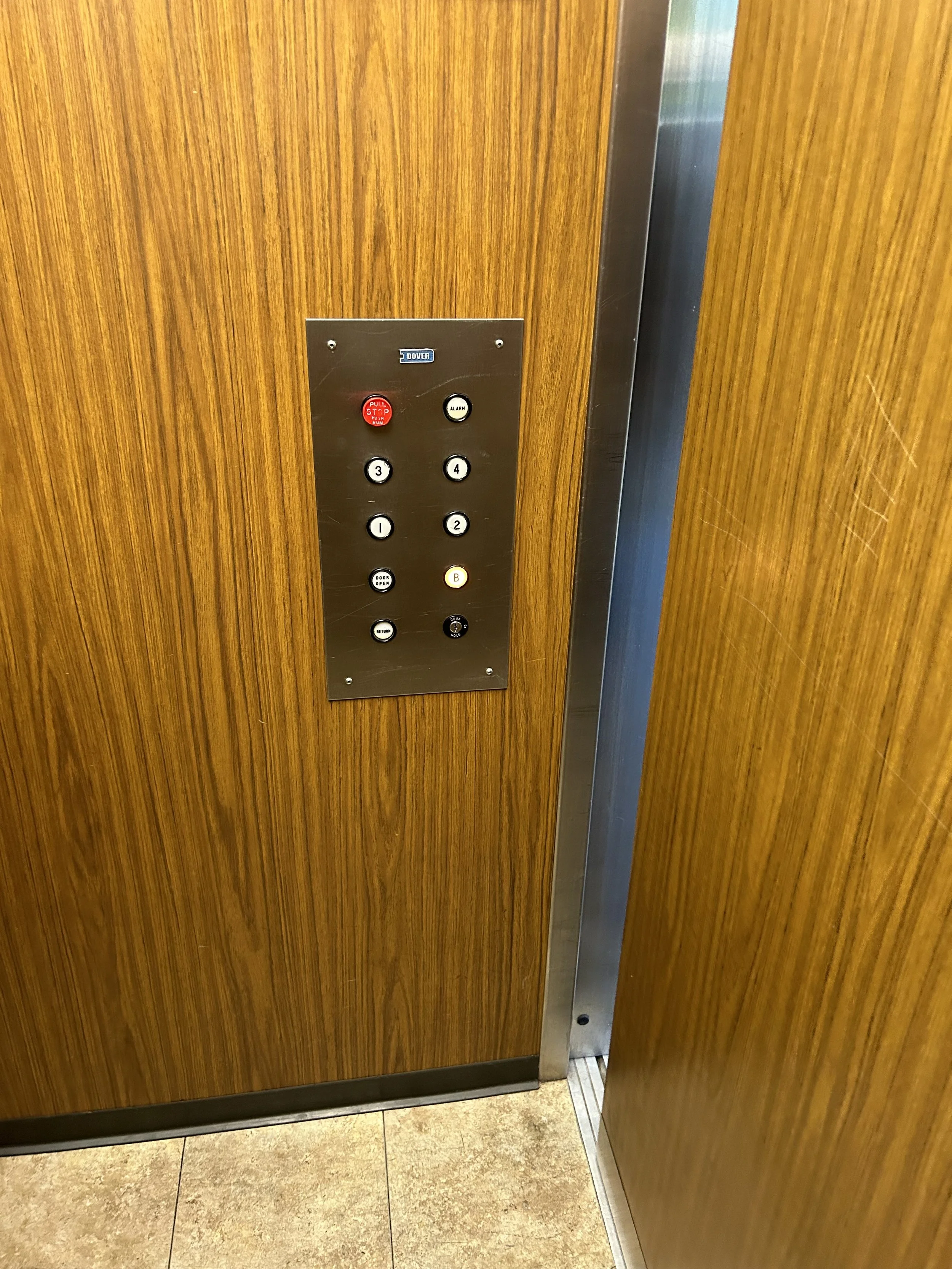

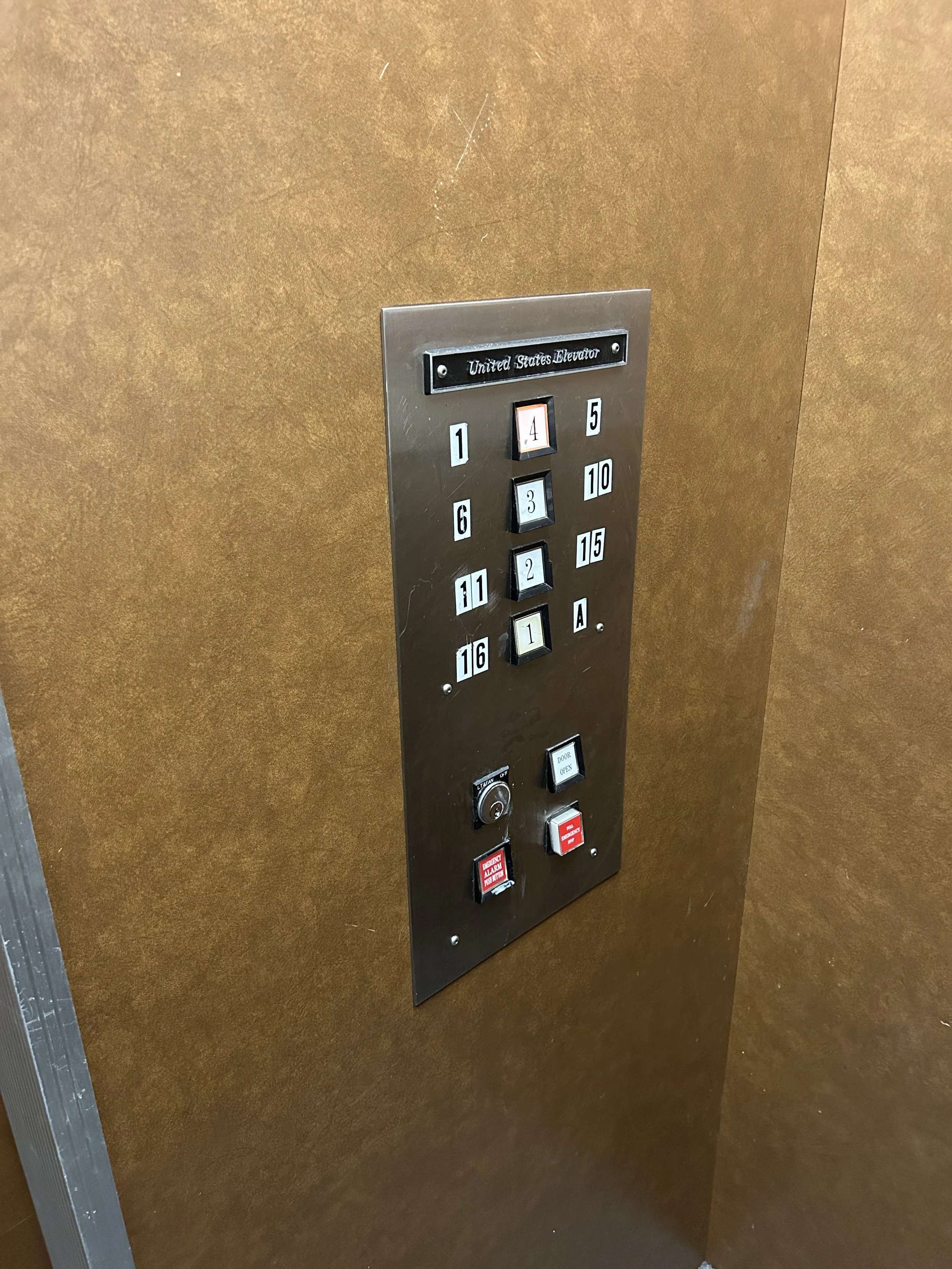

Here are some examples of fixtures that should be considered for modernization:

What’s included?

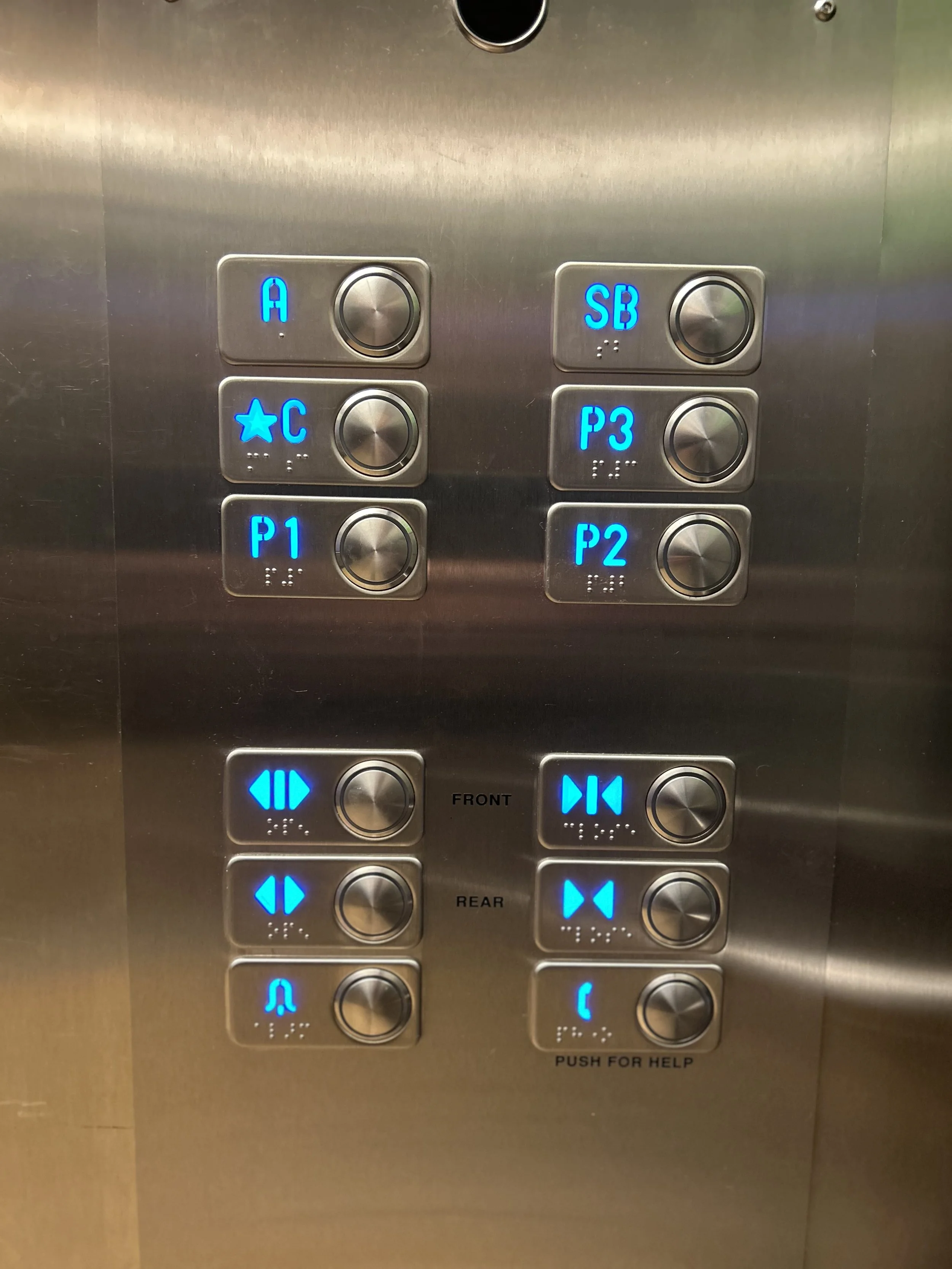

  • VANDAL RESISTANT. Most modernizations include vandal resistant fixtures because they’re (1) more durable and (2) look better.

  • AUDIO / VISUAL EMERGENCY COMMUNICATION SYSTEM. After a modernization, the elevator must comply with the 2-way audio / visual emergency communication requirements. I’ve written about this here. This will be required during a modernization.



Considerations

  • AESTHETICS. There are many button configurations and LED colors. If this matters to you, it’s worth a conversation. If it doesn’t matter to you, the elevator company will make the selection for you.

  • SECURITY. If you currently have, or plan to add security to the elevator, be sure to include that in your evaluation of a modernization. This way, you can include future provisions.

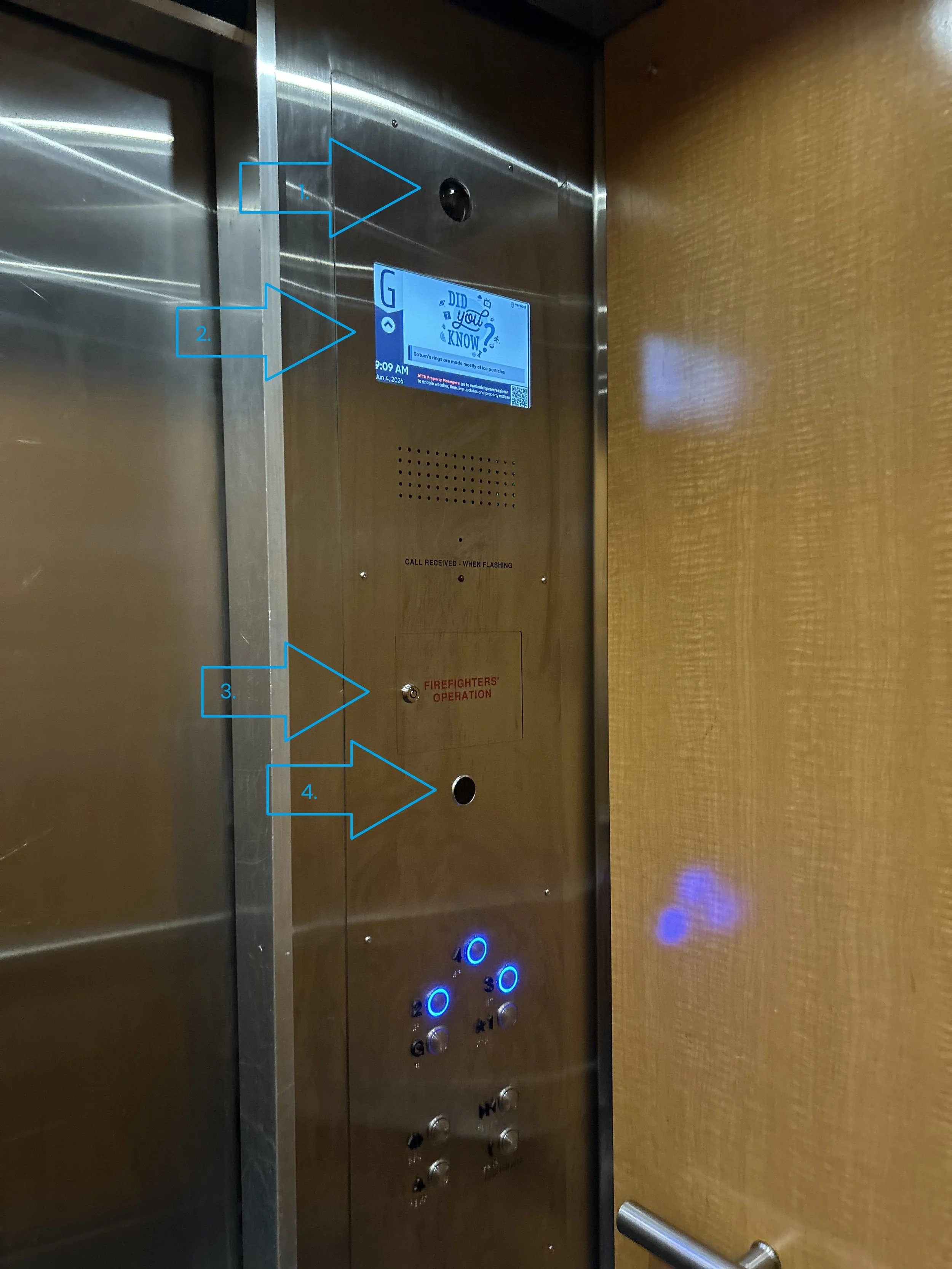

Updated COP with code upgrades.

Here are some updated fixtures with the following:

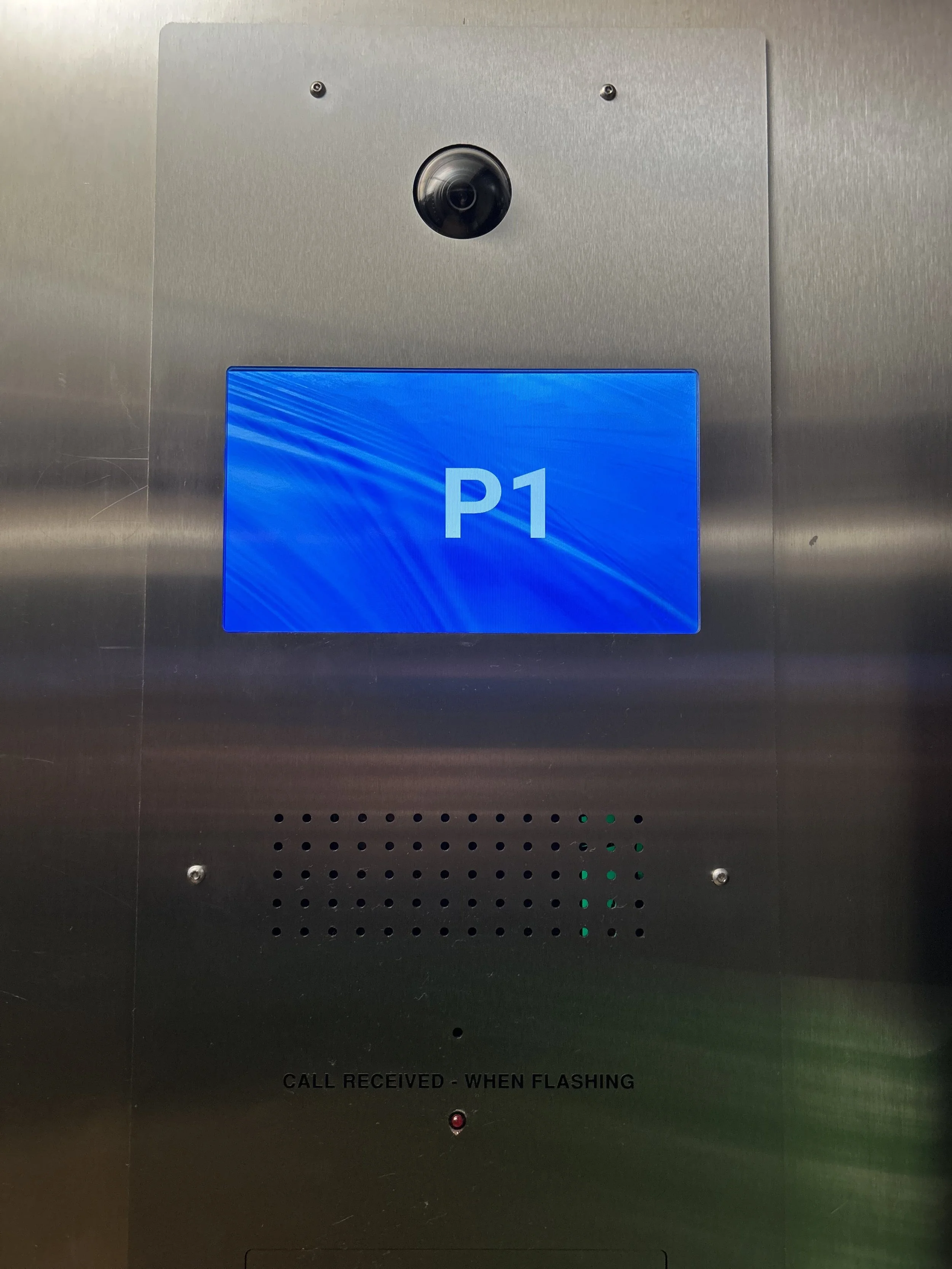

  1. Audio / Visual Communication - Camera. I’ve written about the new audio / visual communication requirements here. This is the camera that allows the dispatcher to view into the elevator. [Code required]

  2. Matisse Screen. This screen has multiple functions. During normal operations, this is your position indicator. It also provides news and information, if desired. The building owner / manager can also post notifications here. During an emergency, this screen becomes part of the audio / visual communication system. It can be used to communicate with a passenger. Messages can be posted and responded to using the Door Open and Door Close buttons for “yes” and “no”. [Code required]

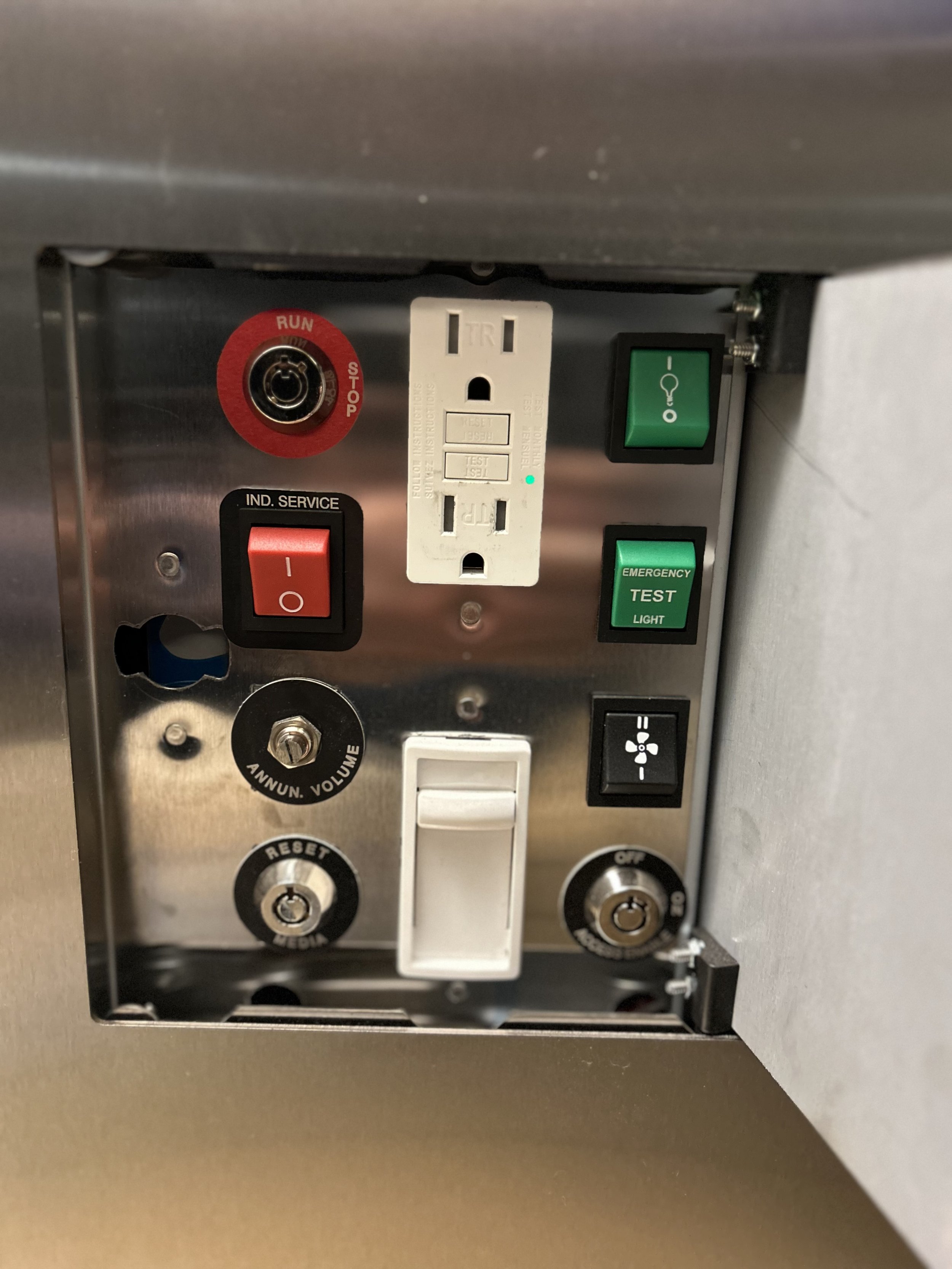

  3. Firefighters Operation. Firefighters Operation (AKA Fire Service) key switches can be found behind this panel. When the elevator enters into firefighters operation, this panel will open, revealing the necessary key switches. [Code required]

  4. Firefighters Indicator. This indicator will illuminate a fireman’s hat when the elevator is in Firefighters Operation. [Code required]

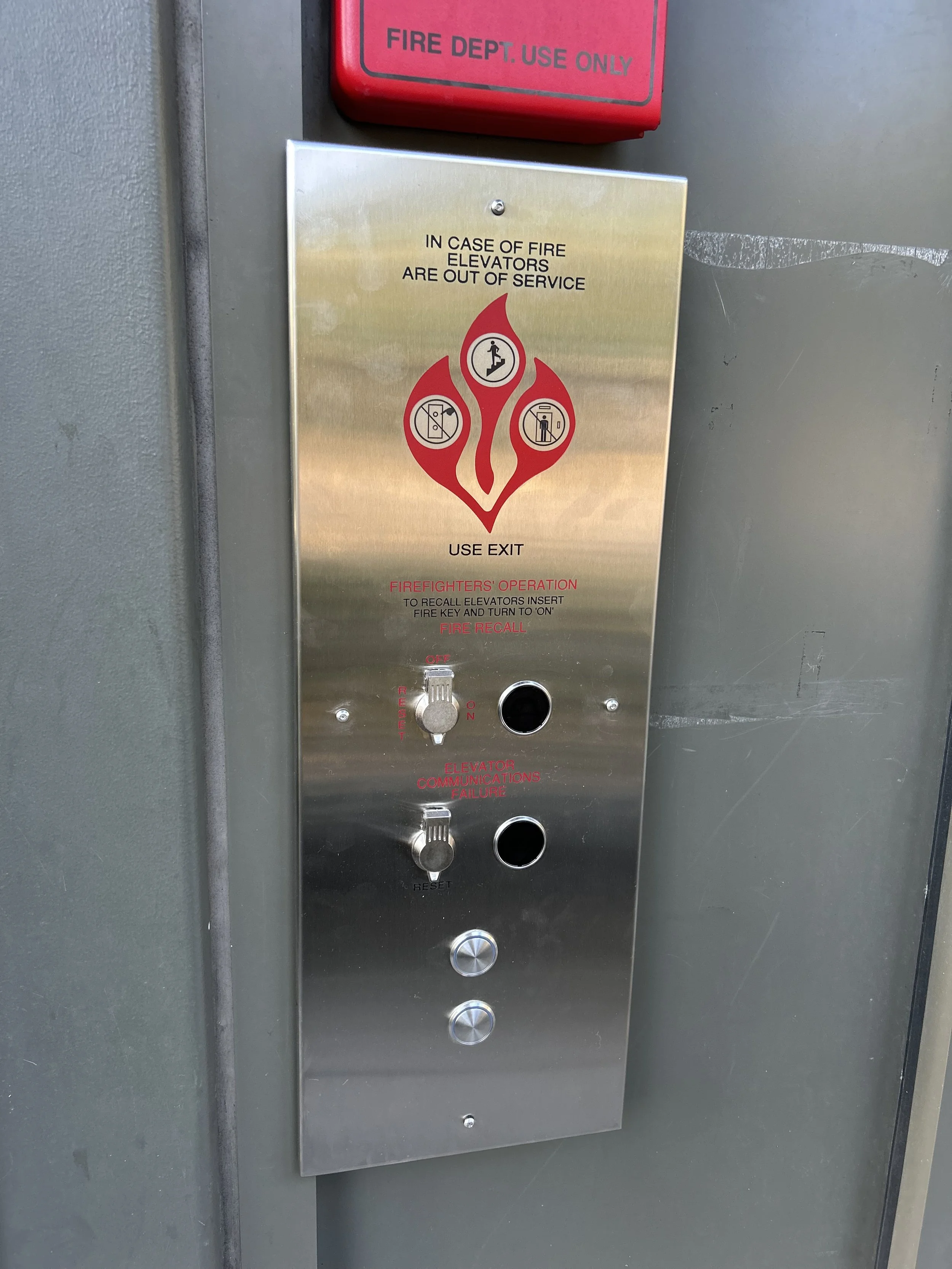

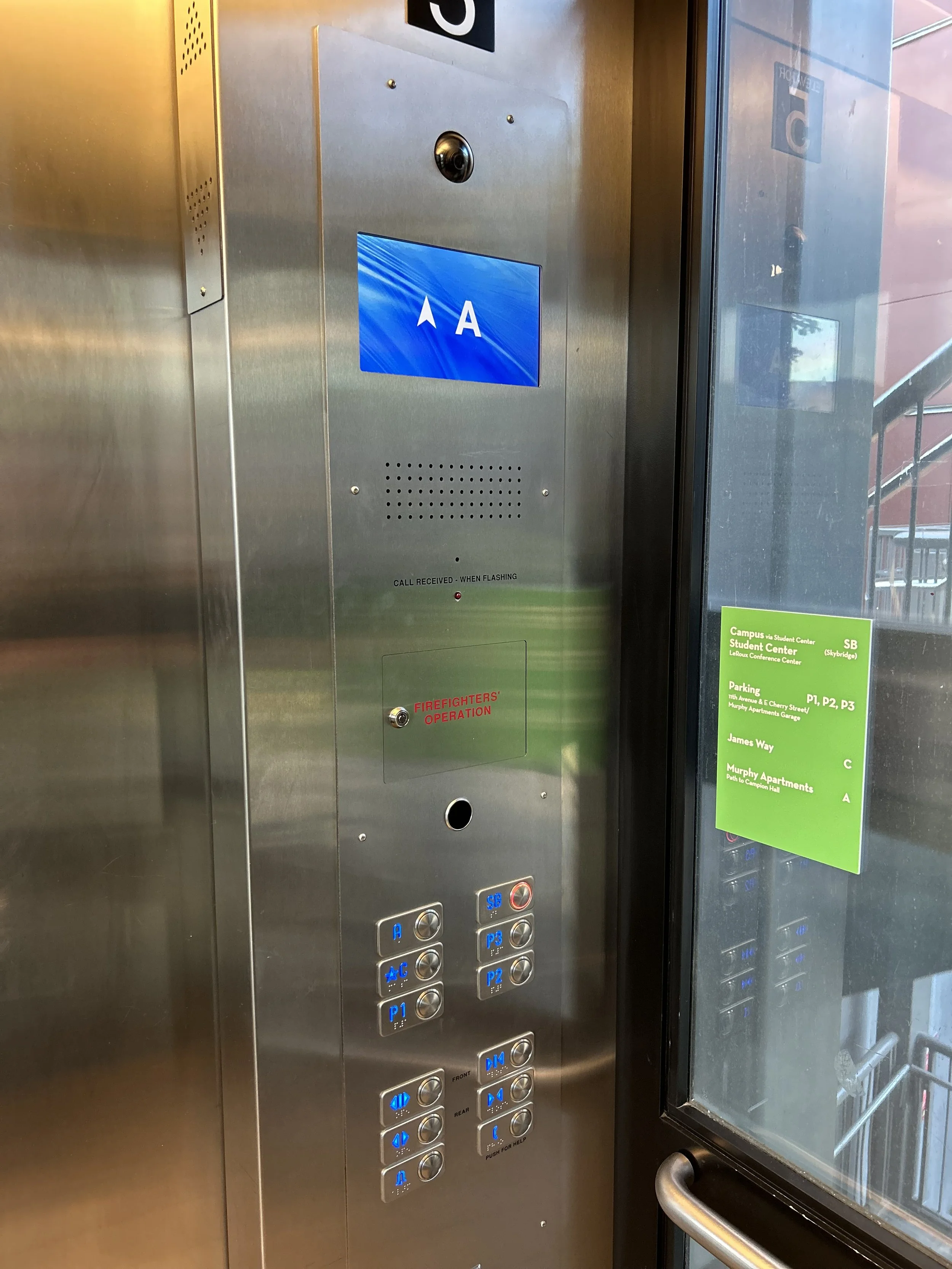

Updated fixtures:
